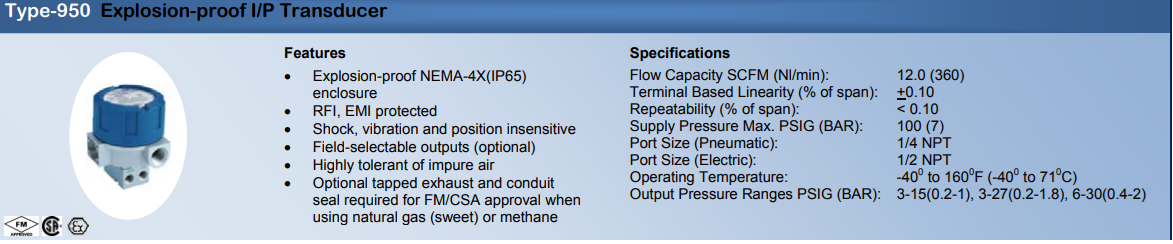

ControlAir康气通 Type 950XP 防爆转换器(I/P, E/P)图纸资料说明:Type 950XP Explosion-Proof I/P Transducer Process-reliable and field rugged,The Type-950XP Explosionproof I/P (current to pressure) transducer produces a pneumatic output that is directly proportional to a current input signal. A closed loop pressure feedback control system provides a highly accurate, stable air pressure output for the operation of actuated valves. The unit can mount in any position and is vibration insensitive. Its compact housing and easily accessible ports and adjustments make set-up and installation of the unit simple. An integral volume booster provides high flow capacity, which increases control speed in criticalapplications.Features •Optional Field-Selectable Outputs Allows you to stock only one unit for all outputs •Approved for Natural Gas When purchased with option (E) •RFI/EMI Protected Eliminates susceptibility to electromagnetic intereference •Compact Size Installs where others won't •Low Air/Gas Consumption 3.0 scfh at mid rangeWarranty ControlAir, Inc. products are warranted to be free from defects in materials and workmanship for a period of eighteen months from the date of sale, provided said products are used according to ControlAir, Inc. recommended usages. ControlAir, Inc.'s liability is limited to the repair, purchase price refund, or replacement in kind, at ControlAir, Inc.'s sole option, of anyproducts proved defective. ControlAir, Inc. reserves the right to discontinue manufacture of any products or change products materials, designs or specifications without notice. Note: ControlAir does not assume responsibility for the selection, use, or maintenance of any product. Responsibility for the proper selection, use, and maintenance of any ControlAir product remains solely with the purchaser and end user.

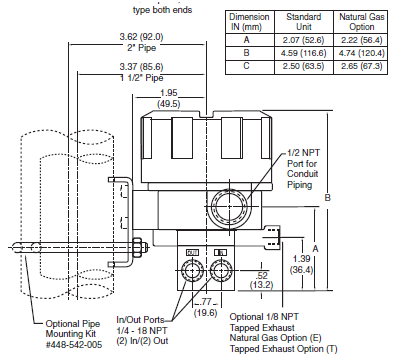

Now, there is a compact I/P transducer that delivers reliable high performance for the toughest applications in the most hazardous environments: the Type 950XP from ControlAir. The 950XP converts an electrical current signal to a stable, pneumatic output to actuate valves. Its NEMA 4X (IP65) housing is designed for both Intrinsically Safe and Explosion-Proof operation.Advanced circuitry includes electronic feedback control for superior vibration protection and highly accurateoutput.With flow rates up to 12 SCFM (20m3/hr), the 950XP has the muscle to drive large valves and actuators. It is very economical to operate, consuming only .05 SCFM (0.11m3/hr), which is especially important in natural gas applications. Its small footprint can fit into tight spots. An optional mounting kit lets you mount it directly on a valve, wall, panel, or 2" pipe. Optional field-selectable process output ranges reduce downtime and inventory. And since the 950XP is position insensitive, it provides even more freedom in mounting and connecting to valves and instruments. As a result of this flexibility, installation goes faster.Easy access Zero and Span adjustments make bench or field calibration quick and easy. For operating versatility, you may choose direct, reverse, and split range modes. A piezoelectric bimorph actuator and surfacemounted electronics are conveniently mounted on a removable control manifold that allows easy maintenance.The 950XP can be out-ofthe-box and up-and-running quickly.Whether designing a new control system or upgrading an old one, the Type 950XP is the best unit for the job. It is a great combination of performance and value. Get in touch with ControlAir today and one of our application specialists will be happy to discuss your needs.
