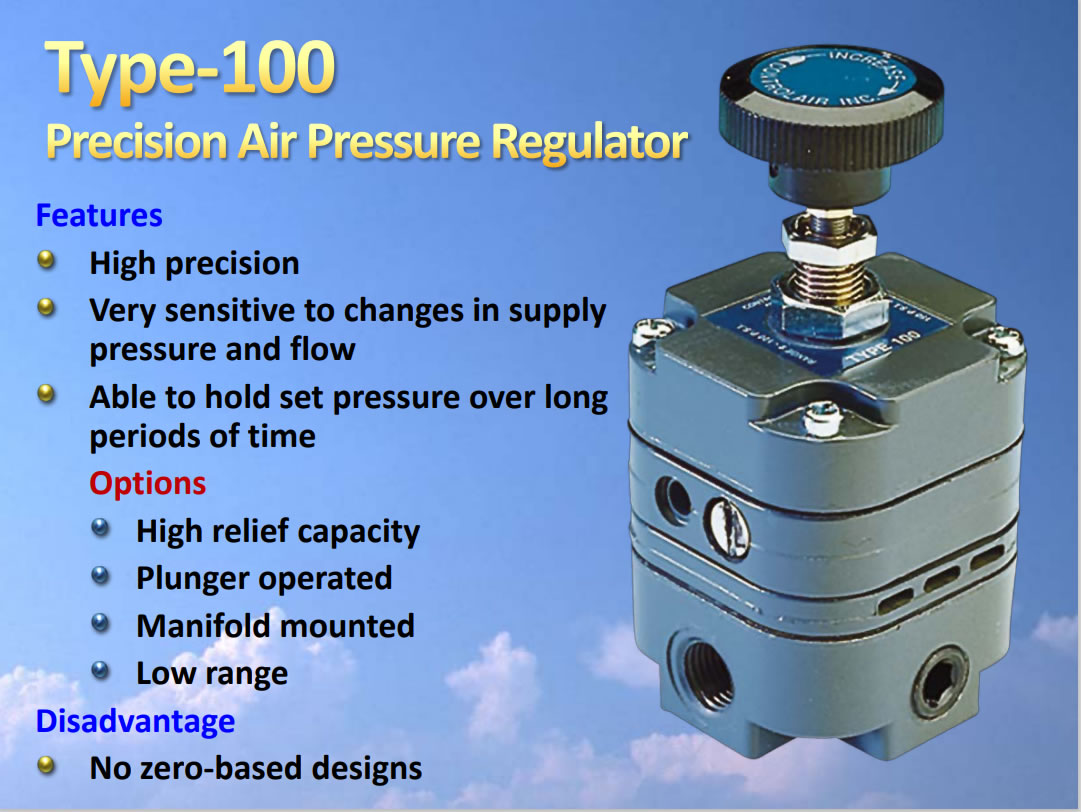

ControlAir康气通 TYPE100精密减压阀图纸资料说明: The measuring capsule in the Type 100 is the sensing element thatcontrols a high precision, balanced servomechanism. Stainlesssteel alloy construction gives the measuring capsule the ability tomaintain forces over long periods of time without hysteresis. Thiseliminates problems associated with regulators that are controlledby a range spring. The downstream regulated pressure fills thecontrol chamber and surrounds the measuring capsule. Expansion,contraction, or other slight movement of the capsule causes thepilot valve to open or close. This creates a substantial pressurechange within the pilot pressure chamber. The change in pilot pressure is directly proportional to the downward force on the pilotdiaphragm which causes the appropriate movement of the supplyvalve or relief valve and corrects any variation from set pressure.The high gain nature of this servomechanism allows the Type 100to react to changes in set pressure as little as 0.01 psig.Regulated pressure applies an upward force on the underside ofthe control diaphragm. When set pressure drifts above the set pointthe control diaphragm assembly moves upward and allows excesspressure to be vented out of the relief valve to atmosphere. Thedesign of the relief valve permits substantial reverse flow capacitywhich quickly exhausts system back pressure thus eliminating theneed for a separate relief valve. The Type 100 is a high precision, multi-stage pressureregulator. Thispressurecontrollerprovides the highestlevel of regulation accuracy and repeatability available.The Type 100 is ideal for applications that call for theutmost in control and maximum stability under variableoperating conditions. A stainless steel


Type-100LR 50 psig (3.4 BAR) Operating Temperature -20° to 160°F (-29° to 71°C) Materials:Body: diecast zinc alloy Capsule and adjusting screw: stainless steel Assemblies: stainless steel, brass, plated steel, acetal Diaphragms: Buna-N elastomer and polyester fabric Knob: phenolic plastic Weight 1.4 lb (635 g)

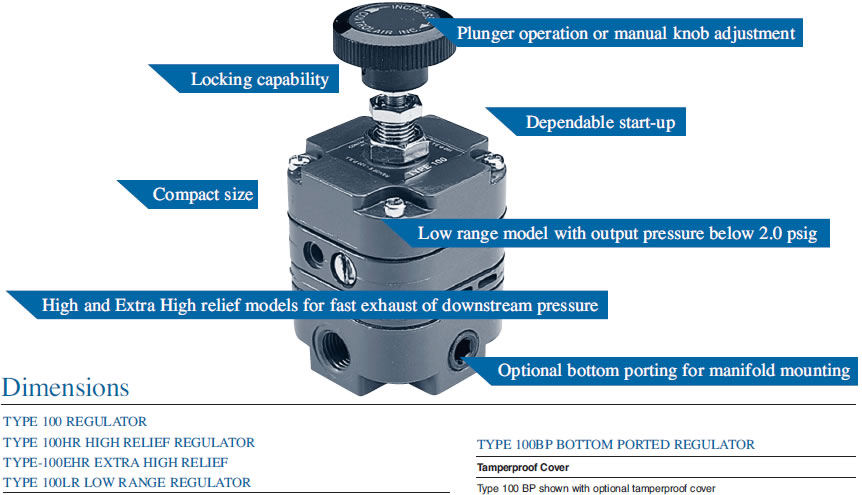

Port Sizes 1/8", 1/4", 3/8" NPT/BSP Gauge Ports (2) 1/4" NPT/BSP Output Pressure Ranges 0.5-25 psig (0.03 - 1.7 BAR),Type-100LR only,2-40 psig (0.14-2.7 BAR),2-60 psig (0.14-4 BAR) 2-120 psig (0.14-8 BAR) Mounting Options pipe, panel or optional bracket Flow CharacteristicsApplications The Type 100 is well suited for processes that require precise regulation of air pressure in pipes and vessels. The Type 100 is often used, but not limited to the following applications: Diagnostic Controls Medical Instrumentation Precision Fluid Control Ventilators Microfluidics Gate Actuators Air Gauging Roll Loading Gas Mixing Valve Operators Calibration Standards Cylinder Loading Air Hoists Web Tensioning Models• Type 100 Standard version relief–offered in Standard three pressure ranges (2-40 psi, 2-60 psi, 2-120 psi) and three port sizes (1/8", 1/4", 3/8").• Type 100HR High relief capacity allows for High Relief quick “blow-down” capability for rapid exhaust of output pressure. Ideal for pneumatic counterbalance applications.• Type 100EHR Extra high relief allows quickExtra High "blow-down" for up to 15 scfm Relief (450 Nl/min) exhaust capacity.• Type 100LR Low range capability provides Low Range accurate pressure regulation at lower output range. Operates with an output pressure range of 0.5 psig to 25 psig. Maximum supply pressure is 50 psig.• Type 100PL Linear actuation of a plunger Plunger controls regulated pressure of a knob• Type 100BP Bottom ported supply and Bottom Port output pressure, as well as four tapped mounting holes for manifold mounting. Suitable for applications with limited space.• Type 100M Motorized regulator. Regulation Motorized accuracy and sensitivity of theType 100. Suitable for remote,"fail in place" applications.See website for more information.Accurate, stable and dependable pressure regulation,7/16-20 UNF-2A 0.434 DIA[11]BRACKET (OPTIONAL)(P/N 446-707-045)• Type 100 Regulator• Type 10HR High Relief Regulator• Type-100EHR Extra High Relief• Type 100LR Low Range Regulator Dimensions Plunger Travel Pressure Range Plunger Travel*psig (BAR) in (mm)2-40 (0.14-2.7) .120 (3.0),2-60 (0.14-4.1) .90 (2.3)2-120 (0.14-8.2) .100 (2.5)* +/- 10% manufacturer tolerance Return Spring,0.4 in. (10 mm) nominal return height; 7 oz. (200 g),approximate preload force. 7.5 lb./in. (135 g/mm) approximate spring rate, between 0.4 in. (10 mm) and .24 in. (6.5 mm) compressed height • Type 100BP Bottom Ported Regulator Tamperproof Cover Type 100 BP shown with optional tamperproof cover (available with Type 100, Type 100HR and Type 100LR).• Type 100PL Plunger Operated Regulator • Type 100 Manifold Mounting Kit (P/N 448-548-035)Drawing downloads available at www.controlair-china.comat www.controlair-china.com 8 Columbia Drive / Amherst, NH 03031 USA / www.controlair-china.com / Tel: 021-37785053 /Mobile: 178 2171 9638An ISO 9001:2015 Registered CompanyType 100 Precision Air Pressure Regulator P/N 441-625-001 3/18/21 Warranty ControlAir LLC products are warranted to be free from defects in materials and workmanship for a period of eighteen months from the date of sale, provided said products are used according to ControlAir LLC recommended usages. ControlAir LLC’s liability is limited to the repair, purchase price refund, or replacement in kind, at ControlAir LLC’s sole option, of any products proved defective. ControlAir LLC reserves the right to discontinue manufacture of any products or change products materials, designs or specifications without notice. Note: ControlAir does not assume responsibility for the selection, use, or maintenance of any product.Responsibility for the proper selection, use, and maintenance of any ControlAir product remains solely with the purchaser and end user. Drawing downloads available Principles of Operation The measuring capsule in the Type 100 is the sensing element that controls a high precision,balanced servomechanism.Stainless steel alloy construction gives the measuring capsule the ability to maintain forces over long periods of time without hysteresis. This eliminates problems associated with regulators that are controlled by a range spring. The downstream regulated pressure fills the control chamber and surrounds the measuring capsule.Expansion, contraction, or other slight movement of the capsule causes the pilot valve to open or close. This creates a substantial pressure change within the pilot pressure chamber.The change in pilot pressure is directly proportional to the downward force on the pilot diaphragm which causes the appropriate movement of the supply valve or relief valve and corrects any variation from set pressure. The high gain nature of this servomechanism allows the Type 100 to react to changes in set pressure as little as 0.01 psig.Regulated pressure applies an upward force on the underside of the control diaphragm. When set pressure drifts above the set point the control diaphragm assembly moves upward and allows excess pressure to be vented out of the relief valve to atmosphere. The design of the relief valve permits substantial reverse flow capacity which quickly exhausts system back pressure thus eliminating the need for a separate relief valve. Adjusting Knob Locking Nut Panel Mounting Nut Control Chamber Measuring Capsule Pilot Valve Pilot Pressure Chamber Relief Valve Regulator,Structure,Atmospheric,Pressure,Pilot,Pressure,Supply,Pressue,Regulated,Pressure,Bleed,Orifice,Pilot,Diaphragm,Exhaust Vent,Control,Diaphragm,Supply Air Regulated Air,Constant,Controlled,Regulated Pressure Unregulated Supply Pressure,Supply,Valve,Ordering,Type Port Size Output Range Part Number(NPT/BSP) psig (BAR) NPT BSP100 1/8" 2-40 (0.14-2.7) 100-AA 100-AAU,100 1/8" 2-60 (0.14-4.1) 100-AB 100-ABU,100 1/8" 2-120 (0.14-8.2) 100-AC 100-ACU,100 1/4" 2-40 (0.14-2.7) 100-BA 100-BAU,100 1/4" 2-60 (0.14-4.1) 100-BB 100-BBU,100 1/4" 2-120 (0.14-8.2) 100-BC 100-BCU,100 3/8" 2-40 (0.14-2.7) 100-CA 100-CAU,100 3/8" 2-60 (0.14-4.1) 100-CB 100-CBU,100 3/8" 2-120 (0.14-8.2) 100-CC 100-CCU,100HR 1/4" 2-120 (0.14-8.2) 110-BC 110-BCU,100HR 3/8" 2-120 (0.14-8.2) 110-CC 110-CCU,100EHR 1/4" 2-120 (0.14-8.2) 111-BC 111-BCU,100EHR 3/8" 2-120 (0.14-8.2) 111-CC 111-CCU,100LR 1/4" .5-25 (0.03-1.7) 120-BA 120-BAU,100BP - 2-40 (0.14-2.7) 140-BA 140-BAU,100BP - 2-60 (0.14-4.1) 140-BB 140-BBU,100BP - 2-120 (0.14-8.2) 140-BC 140-BCU,100PL 1/8" 2-40 (0.14-2.7) 150-AA 150-AAU,100PL 1/8" 2-60 (0.14-4.1) 150-AB 150-ABU,100PL 1/8" 2-120 (0.14-8.2) 150-AC 150-ACU,100PL 1/4" 2-40 (0.14-2.7) 150-BA 150-BAU,100PL 1/4" 2-60 (0.14-4.1) 150-BB 150-BBU,100PL 1/4" 2-120 (0.14-8.2) 150-BC 150-BCU,100PL 3/8” 2-40 (0.14-2.7) 150-CA 150-CAU,100PL 3/8" 2-60 (0.14-4.1) 150-CB 150-CBU,100PL 3/8" 2-120 (0.14-8.2) 150-CC 150-CCU,OptionsTamperproof Cover - Add “T” at end of part number (See drawing for dimensions)Preset Pressure - Output pressure can be preset at factory.(Consult factory for ordering information)Tapped Exhaust - To order with a 10-32 tapped exhaust vent and barbed,bleed screw, add an “E” to end of part number,Oxygen Compatible - Consult factory for ordering information BSP Porting - To order with BSP porting, add “U” to end of part number,Accessories,Mounting Bracket: P/N 446-707-045,Manifold Mounting: P/N 448-548-035 (Type 100BP only),Gauges: 1/4" NPT back-mount, 2" face, dual scale,0-15 psi P/N 446-725-003,0-30psi P/N 446-725-004,0-60 psi P/N 446-725-001,0-160 psi P/N 446-725-002
